Volume I: Video/Graphics

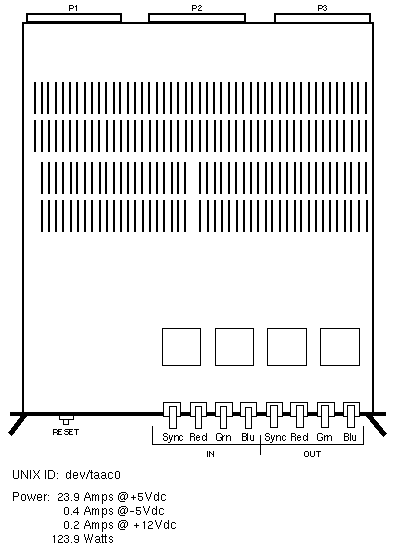

TAAC-1 Application Accelerator

Sun-3/160/180/260/280/460/470/480
Sun-4/260/280/360/370/380/390/470/490
501-1383 / 501-1447
POP Board

501-1383 / 501-1447
DFB Board

501-1383 / 501-1447
DFB Board

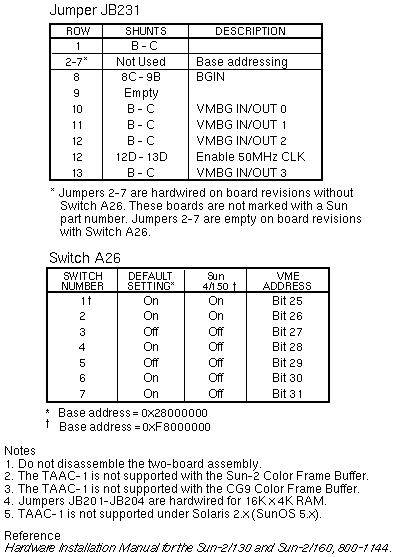

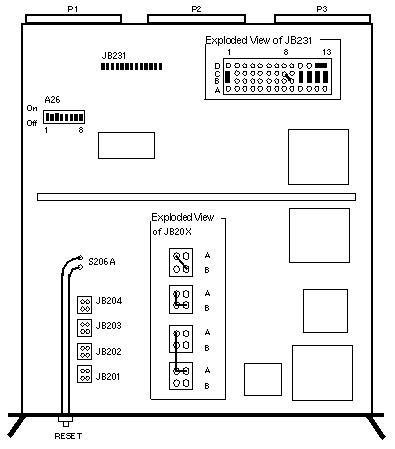

Jumper and Switch Settings
