CDC 94171-327/344 [327MB]
5 1/4" Embedded SCSI
Sun386i/150/250
Sun-3/470 / Sun-4/330/370/470
Options RREXP-P7 / RR129 / RR134
Options 526 / 527 / 530 / 539
555-1005 [w Bracket, w/o Bezel, 77777107]
370-1153 [w/o Bracket, w/o Bezel, 77777107, 3 1/4" Height]
370-1230 [w/o Bracket, w Bezel, 77777126, 3 1/4" Height]

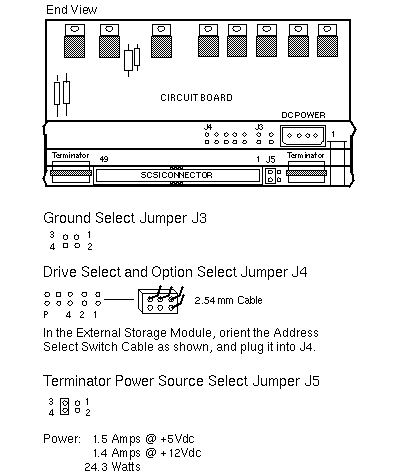

Jumper Settings

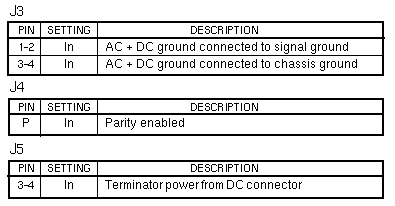

555-1005 and 370-1153 Only

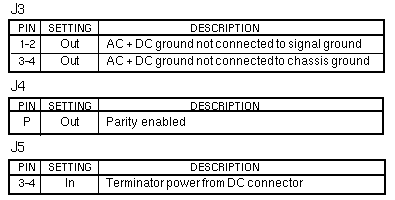

370-1230 Only

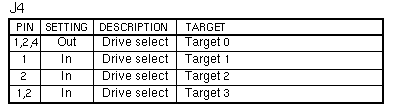

Address Jumper Settings
555-1005 / 370-1153 / 370-1230
CDC 94171-327/344
