Alternate Power Supply for Sun-VME-Featureconnector:

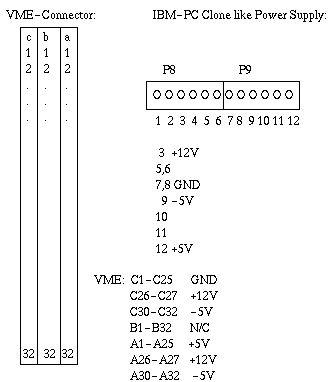

Connector Pinouts:
Connection Path:
Connect PC Pin 10,11 and 12 with VME A1-A25 (don't need all).
Connect PC Pin 3 with VME A26 and A27.
Connect PC Pin 9 with VME C30-C32 or A30-A32 (don't need all).
Connect PC Pin 5,6,7 and 8 with VME C1-C25 (don't need all).
Use thick cables because the 5V-Line uses up to 15A and if you
take thin cables the voltage-drop is to high and your machine
won't run.
This was testet with a Sun3/60 Board and it worked. Is good for
debugging purpose because you can reach all components.
Thanx to Francesco Messineo for fixing this Page.
